Products
Thara wires equipped with machineries and knowledge to produce custom design in meeting the customer specific product requirements, increasing the production efficiencies and reducing costs. Our experienced production and quality staff enables the capability to manufacture welded mesh to meet a wide range of specifications and applications.Welded Wire Mesh

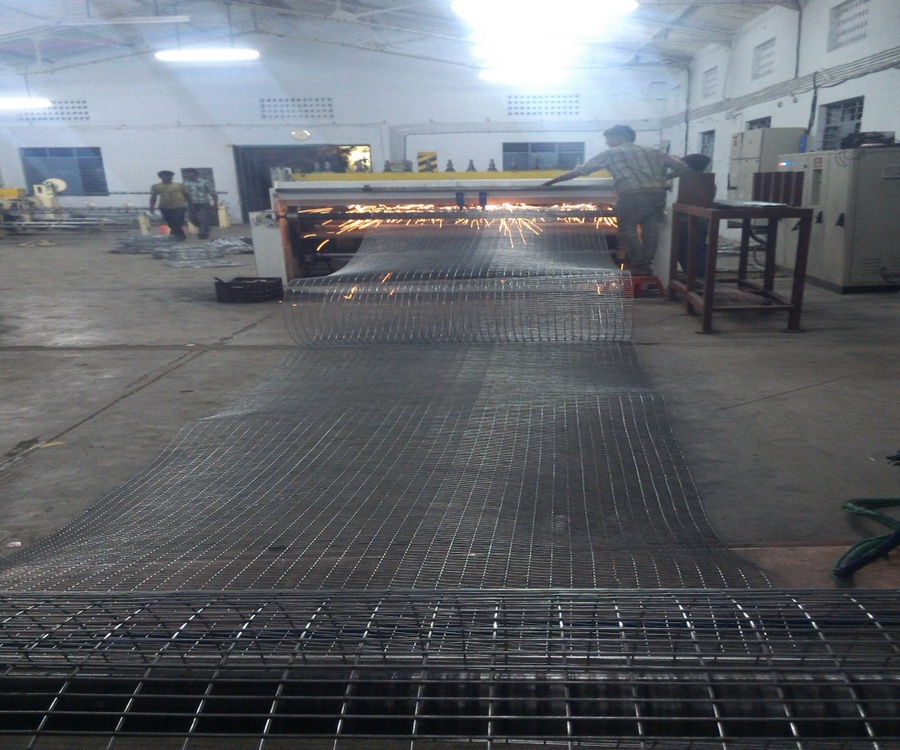

Welded wire mesh are generally bundled in rolls or flat sheets based on the wire size and requirement. Welded Wire Mesh or weld mesh is manufactured on our Fully Automatic Electronic Welder by Electric Resistance Welding. A series of parallel longitudinal wires with required spacing are welded with cross wires at the intersection points as per required spacing. All the spacing between wires is controlled by an automatic programmed mechanism to achieve highest reliability
Features of the Product
- Electrically Fusion Welded
- Prefabricated Joined Grid
- Series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing.
- Security
- Reusable
- Low carbon steel wire
- Used in reinforced concrete
| Product Name | Welded Wire Mesh |
| Production Technique | Electric Resistance Welding |
| Material | M.S., G.I, S.S |
| Color | Black & Sliver. |
| Coated | Powder Coating & Zinc Coating |
| Applications | Industry, Agriculture, Construction & Transportation |
| Production Capacity | 20 MT per Day |
| Packaging |
|
Specifications and Sizes
| Mesh Aperture | Wire Thickeness | Width/Height | Length |
|---|---|---|---|
| 1/2” x ½” | 4/6/8/10/12/14/16/18/20 Gauge | 1.0 – 2.0 Meter | 1.0 – 100.0 Meter |
| 1” x 1” | 4/6/8/10/12/14/16/18/20 Gauge | 1.0 – 2.0 Meter | 1.0 – 100.0 Meter |
| 1” x ½” | 4/6/8/10/12/14/16/18/20 Gauge | 1.0 – 2.0 Meter | 1.0 – 100.0 Meter |
| 2” x 2” | 4/6/8/10/12/14/16/18/20 Gauge | 1.0 – 2.0 Meter | 1.0 – 100.0 Meter |
| 2” x ½” | 4/6/8/10/12/14/16/18/20 Gauge | 1.0 – 2.0 Meter | 1.0 – 100.0 Meter |
| 3” x 3” | 4/6/8/10/12/14/16/18/20 Gauge | 1.0 – 2.0 Meter | 1.0 – 100.0 Meter |
| 3.5” x 3.5” | 4/6/8/10/12/14/16/18/20 Gauge | 1.0 – 2.0 Meter | 1.0 – 100.0 Meter |
| 4” x 4” | 4/6/8/10/12/14/16/18/20 Gauge | 1.0 – 2.0 Meter | 1.0 – 100.0 Meter |
| 8” x 8” | 4/6/8/10/12/14/16/18/20 Gauge | 1.0 – 2.0 Meter | 1.0 – 100.0 Meter |
Chain Link Fence
Chain link fence is the traditional and versatie form of fencing. Woven wire usually made from galvanized or PVC coated galvanized steel wire. The zig-zag form makes the diamond patern in this type of fence. The flexible fence fabric makes it easier for installation on ground with uneven terrain or steep slopes, and it’s a cost efficient system. It also comes in various sizes and can be customized to tailor the requirements of different applications. This type of fence can be refused as well.
Features of the Product
- Easy Installation
- Security
- Reusable
| Product Name | Chain Link Fence |
| Production Technique | Weaving & Twisting (or Knuckling) |
| Material | M.S., G.I, PVC |
| Color | Black, Sliver and Green |
| Coated | Powder Coating & Zinc Coating |
| Applications | Tree Guard, Vacant Land Fence, Garden, Security and Agricultural Fence |
| Production Capacity | 10 MT per Day |
| Packaging |
|
Specifications and Sizes
| Mesh Aperture | Wire Thickeness | Width/Height | Length |
|---|---|---|---|
| 1” | 8/10/12/14/16 Gauge | 1.0 – 5.0 Meter | 1.0 – 100.0 Meter |
| 1.5” | 8/10/12/14/16 Gauge | 1.0 – 5.0 Meter | 1.0 – 100.0 Meter |
| 2” | 8/10/12/14/16 Gauge | 1.0 – 5.0 Meter | 1.0 – 100.0 Meter |
| 2.5” | 8/10/12/14/16 Gauge | 1.0 – 5.0 Meter | 1.0 – 100.0 Meter |
| 3” | 8/10/12/14/16 Gauge | 1.0 – 5.0 Meter | 1.0 – 100.0 Meter |
| 3.5” | 8/10/12/14/16 Gauge | 1.0 – 5.0 Meter | 1.0 – 100.0 Meter |
| 4” | 8/10/12/14/16 Gauge | 1.0 – 5.0 Meter | 1.0 – 100.0 Meter |
